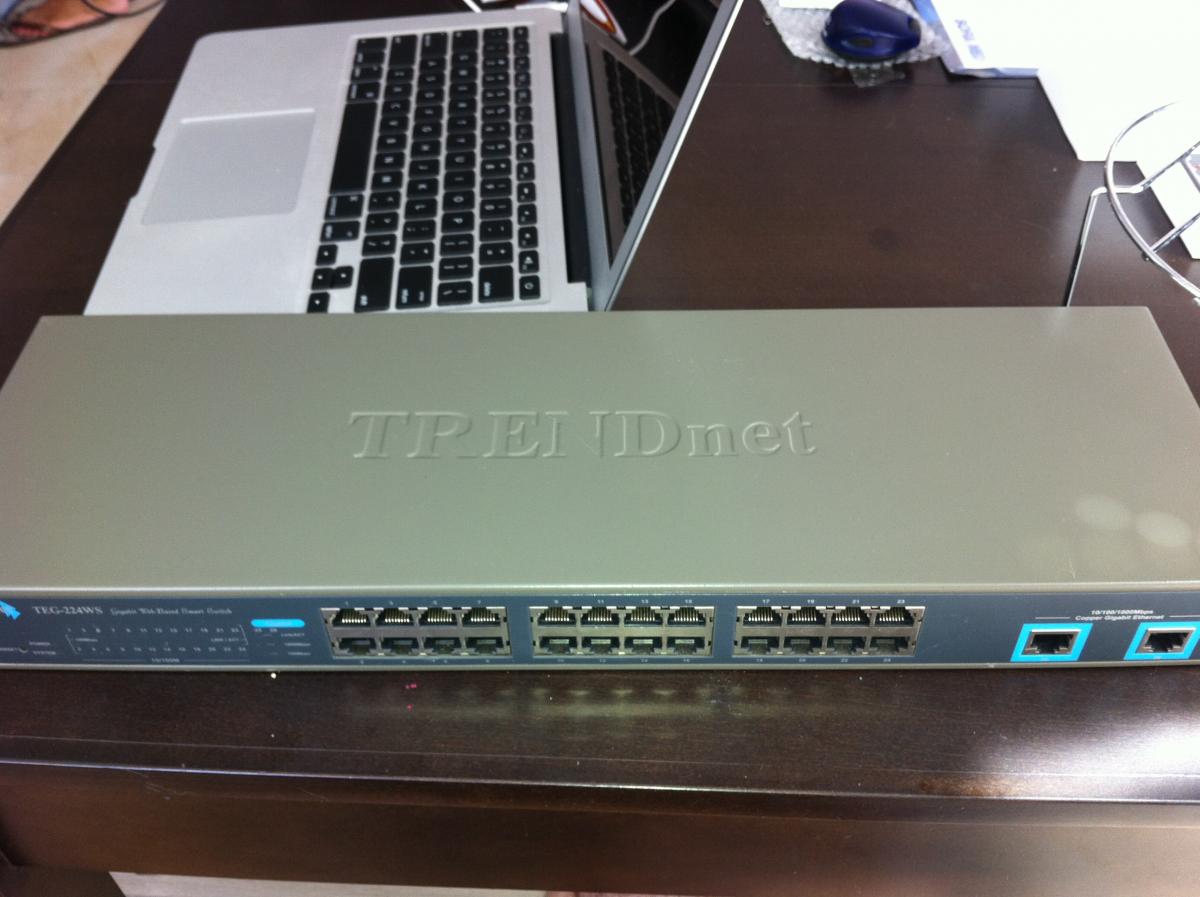

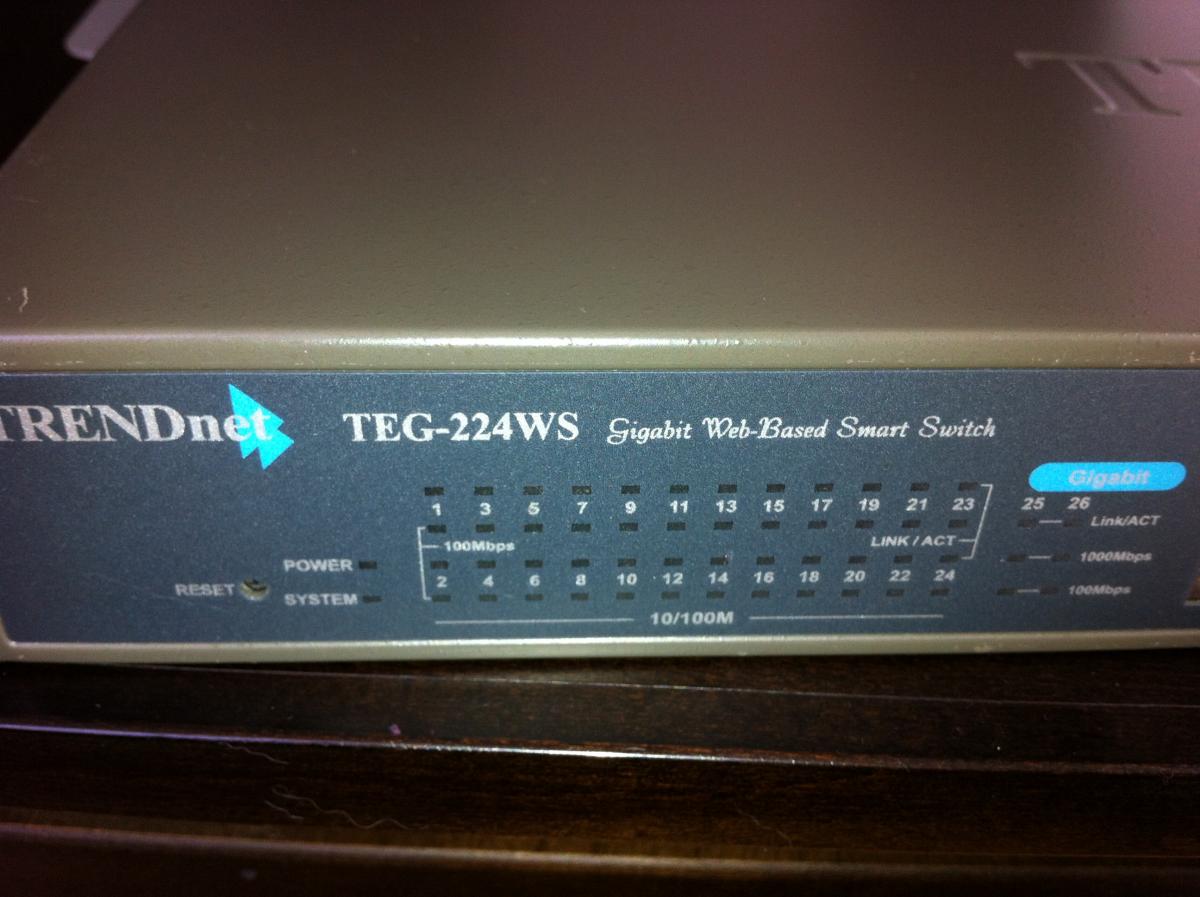

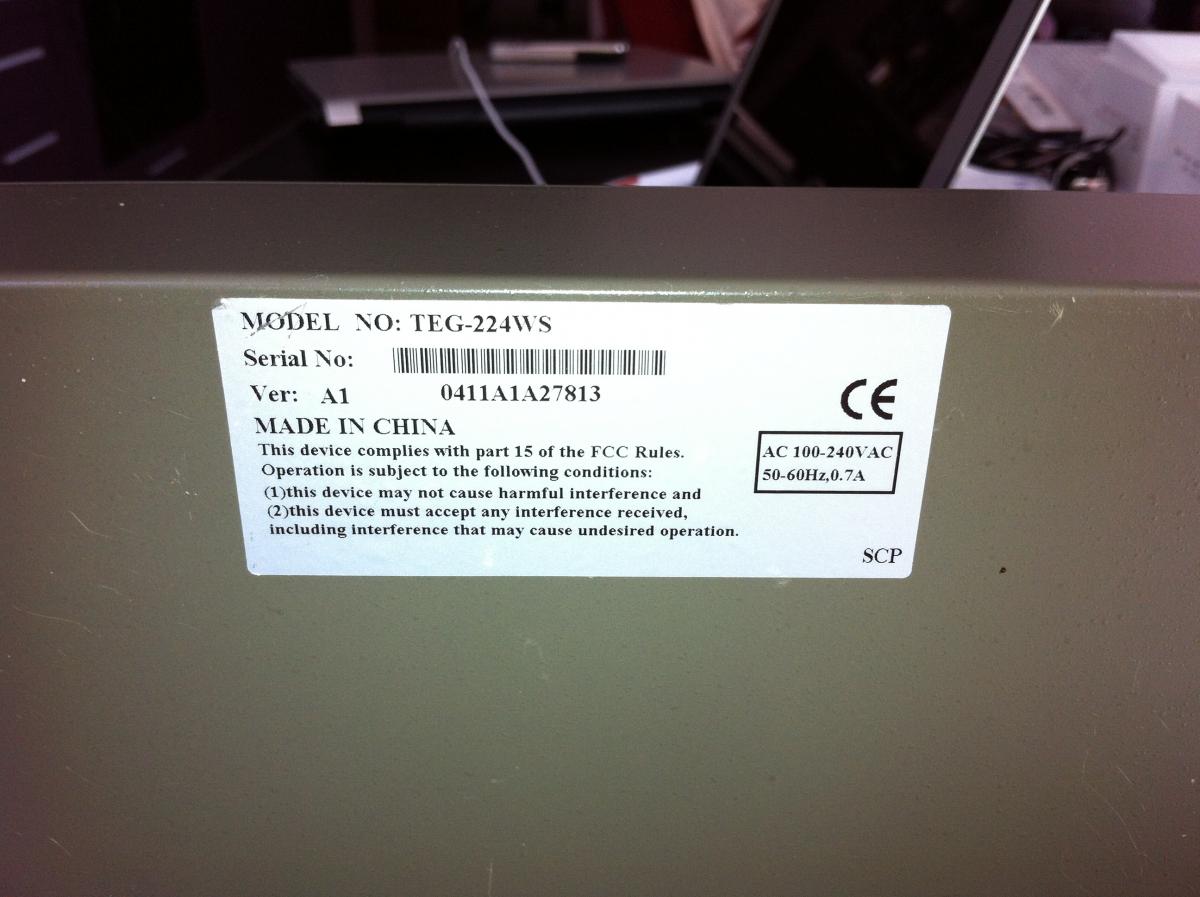

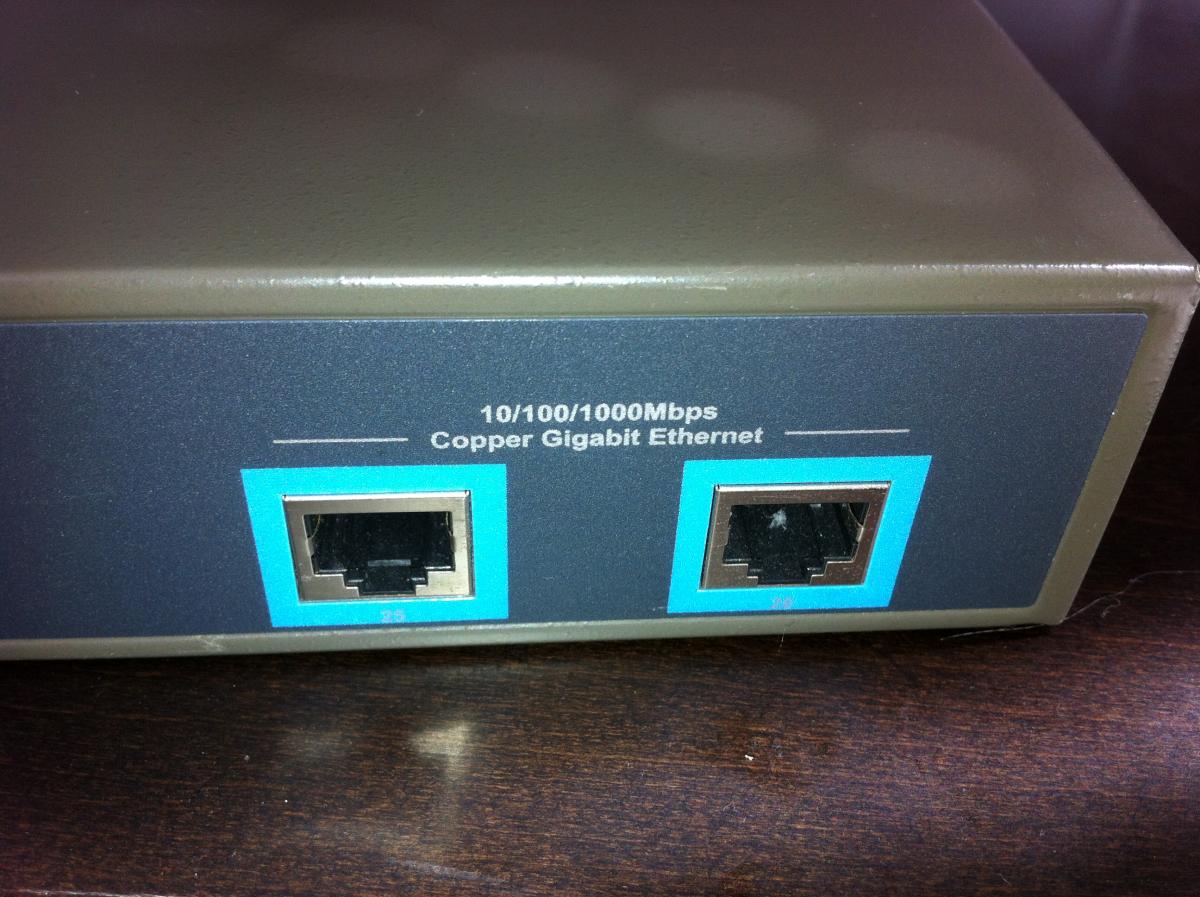

silver0 Публикувано 30 Юли, 2012 Доклад Сподели Публикувано 30 Юли, 2012 1. TRENDnet TEG-224WS 26-port 10/100/1000Mbps Web-Based Smart Switch Features: 24 x 10/100Mbps Auto-negotiation MDIX Fast Ethernet Ports 2 x 10/100/1000Mbps Auto-negotiation, Auto-MDIX Gigabit Ports Full/Half duplex transfer mode for each port (full duplex mode only for Gigabit) Store and Forward switching method Integrated address Look-Up Engine with 6K absolute MAC address table Supports 4MB RAM Data Buffering Extensive diagnostic LED’s on the front panel IEEE 802.3x flow control for Full Duplex mode Back pressure flow control for Half Duplex mode Easy configuration the device from a Web browser Supports Port-Based VLAN and Port-Based IEEE 802.1p QoS Supports Trunking (gigabit ports) and Port Mirroring Support Port setting function allow user setting each port’s speed, duplex mode, and flow control Standard 19” Rack-mount design Спецификации: LAN Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Full Duplex Flow Control Network Media: Ethernet: UTP/STP Cat. 3, 4, 5 Fast Ethernet: UTP/STP Cat. 5 Gigabit : UTP/STP Cat. 5, Cat 5E (Recommend) Protocol: CSMA/CD Topology: Star LAN Port: 24 x 10/100Mbps Auto Negotiation, Auto-MDIX Fast Ethernet ports, 2 x 10/100/1000Mbps Auto Negotiation, Auto MDIX Gigabit ports Address Table: 6K entries per device Data RAM buffer: 4MB per device Data Transfer Rate: Ethernet: 10/20Mbps – Half/Full-Duplex Fast Ethernet: 100/200Mbps – Half/Full Duplex Gigabit Ethernet: 2000Mbps – Half/Full Duplex Diagnostic LEDs: Per Unit: Power, System Per Fast Ethernet Port: Link/ACT, 100M (port 1~24) Per Gigabit Ethernet Port: Link/ACT, 1000M, 100M (port 25,26) Power Consumption: 16 Watts. Max Power Supply:100-240V AC, 50/60Hz Internal Universal Power Supply Dimensions: 440 x 140 x 44 mm (17.32" x 5.5" x 1.73") Weight: 4.7 lb Temperature: Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F) Humidity: 10% ~ 90% (no-condensing) Certifications: FCC Class A, CE Mark A, VCCI-A Суича е неизползван със захранващ кабел. Цена: 99 лв ----------------------------- 2. RouterBOARD 750GL, 400MHz CPU, 64MB RAM, 5 Gbit LAN ports, RouterOS Level 4, Plastic case, Power adapter Модел: RB/750GL Производител: Mikrotik Рутера е чисто нов с 2 години гаранция - закупен от РТС Компютърс. Предоставям оригиналната гаранционна карта! Цена: 69 лв Намирам се в София. Изпращам по куриер за страната. За контакти: 0882 433883 Skype: silvero69 email: teoatana@gmail.com Адрес на коментара Сподели в други сайтове More sharing options...
